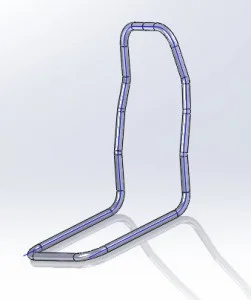

Bent tubular seat frame: The projected curve was created using the Sketch on Sketch option. Note: This example shows that you may not always be able to get 100% of your desired shape from a single feature. The Projected Curve needed to be converted into a 3D Sketch to complete the necessary path. Learn how to create this part by downloading the item below.
Download: Bent tubular seat frame Complexity: Basic Features used: Curve, Sweep, Sketch
View all of the Part Reviewer tutorials here.
